Remote Monitoring System
The Meerkat monitoring system is specifically designed for remote site applications, such as landfill gas monitoring. It continuously tracks critical site metrics and allows for remote adjustments to wellhead pressure. Compact and solar-powered, the devices are easy to install and require minimal maintenance. Data is transmitted wirelessly via a reliable mesh network to a central hub, offering real-time access and configurable alerts for deviations. The system also stores historical data, enabling trend analysis and actionable insights to improve site safety and efficiency.
-
Solar panels and internal batteries keep the system charged, ensuring reliable, hands-free operation.
-
Deployed units form a mesh network with the central hub, making real-time data and historical trends accessible from anywhere.
-
Customizable alerts notify you instantly of gas composition changes, enabling swift action.
-
Hardware modifications include the ability to remotely adjust wellhead pressure settings.

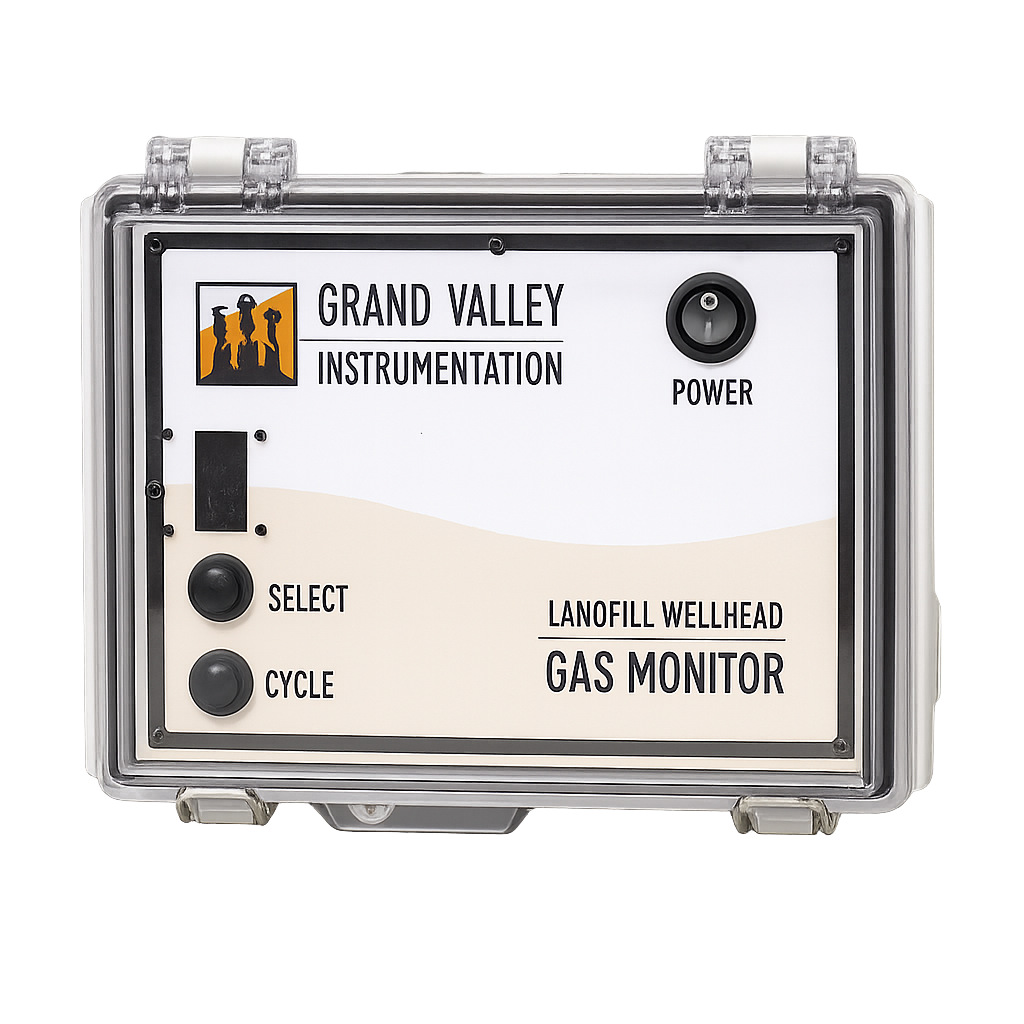

Meerkat Detection Device

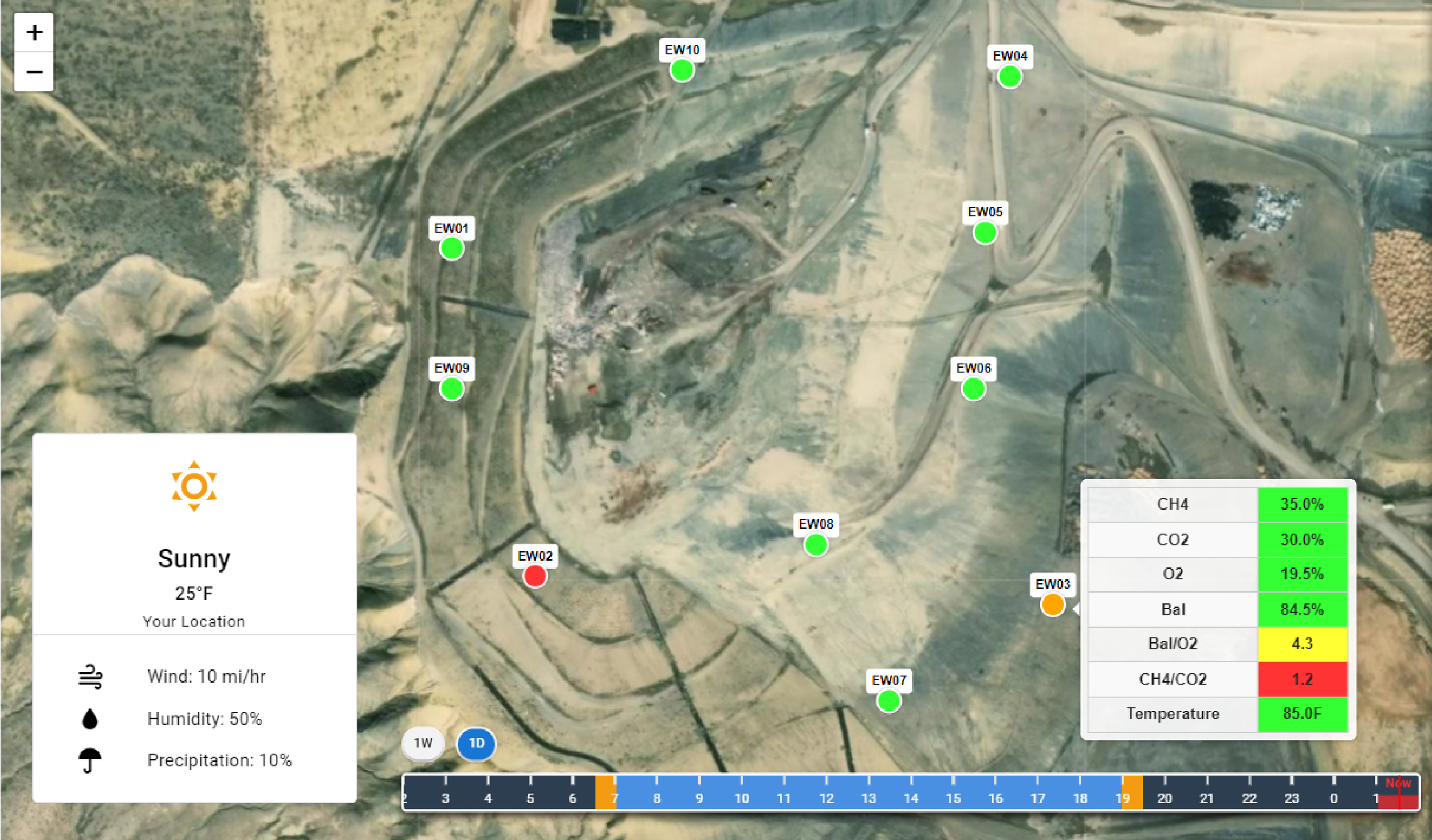

The Meerkat Desktop Application Dashboard

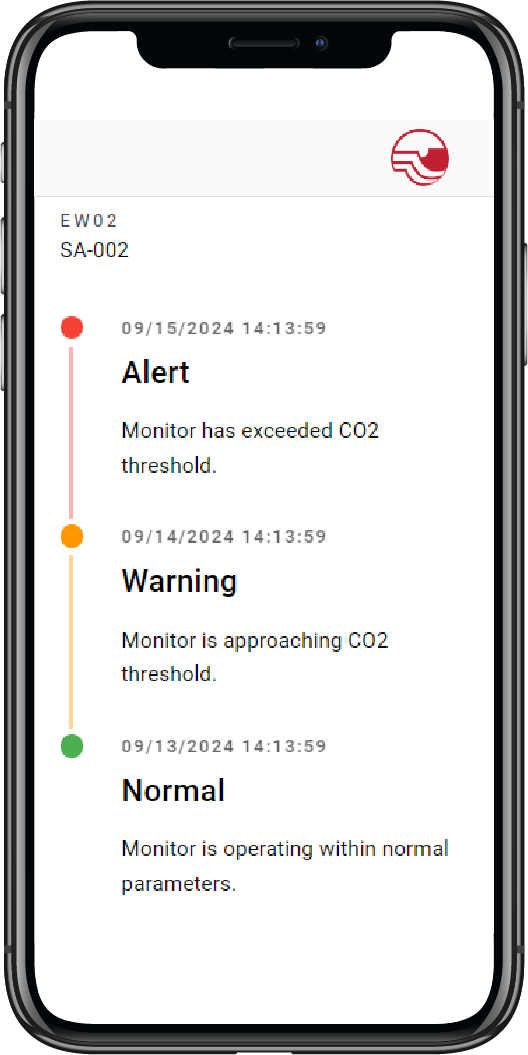

Mobile App View
Total Hydrocarbon Analyzer
The portable and lightweight Total Hydrocarbon Analyzer (THA) is designed for precise detection of hydrocarbons. Equipped with a flame ionization detector (FID), it has fast response time, it ensures accurate and reliable measurements across a wide range.
-
Measures hydrocarbon concentrations from as low as 10 ppm to 100%.
-
Delivers results in less than 3 seconds with an adjustable data reporting rate of 1 point per second.
-
Weighing just 10 lbs, the analyzer is easy to transport and deploy in diverse environments.
-
Includes programmable alarms for gas thresholds and safety features like flame-out detection.
THA-FID Software Application Dashboard
Total Hydrocarbon Analyzer
Mass Spectrometer
Our mass spectrometers are user-friendly, portable, and designed for simple operation and low-maintenance use in the field. The system includes dedicated software accessible directly on the device via its built-in LCD display or remotely through a web browser. Data can be accessed in real-time or retrieved later for detailed post-analysis.
-
Utilizes quadrupole technology with an EI+ source, dual filaments, and an electron multiplier to deliver consistent and precise results.
-
Features automatic mass calibration, SIM-Scan acquisition, and HP ChemStation™ compatibility for seamless data analysis.
-
Integrated with a dry vacuum system, the unit is portable (12”x14”x21”, 48 lbs) and designed for long-term durability.
-
A web-based platform simplifies setup, operation, and data acquisition, accessible in real-time or for post-analysis.

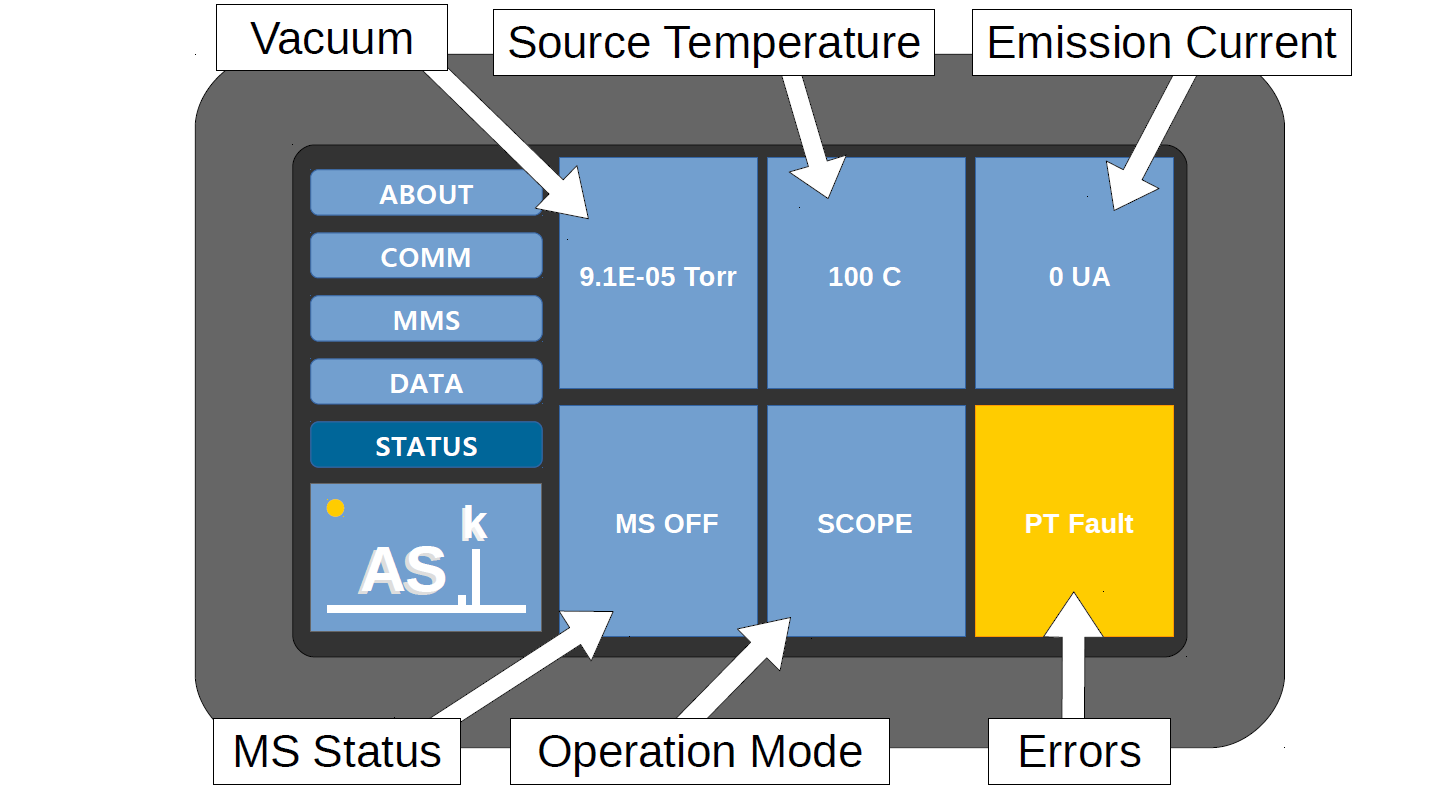

Mass Spectrometer LCD Screen
Mass Spectrometer Web-Based Application

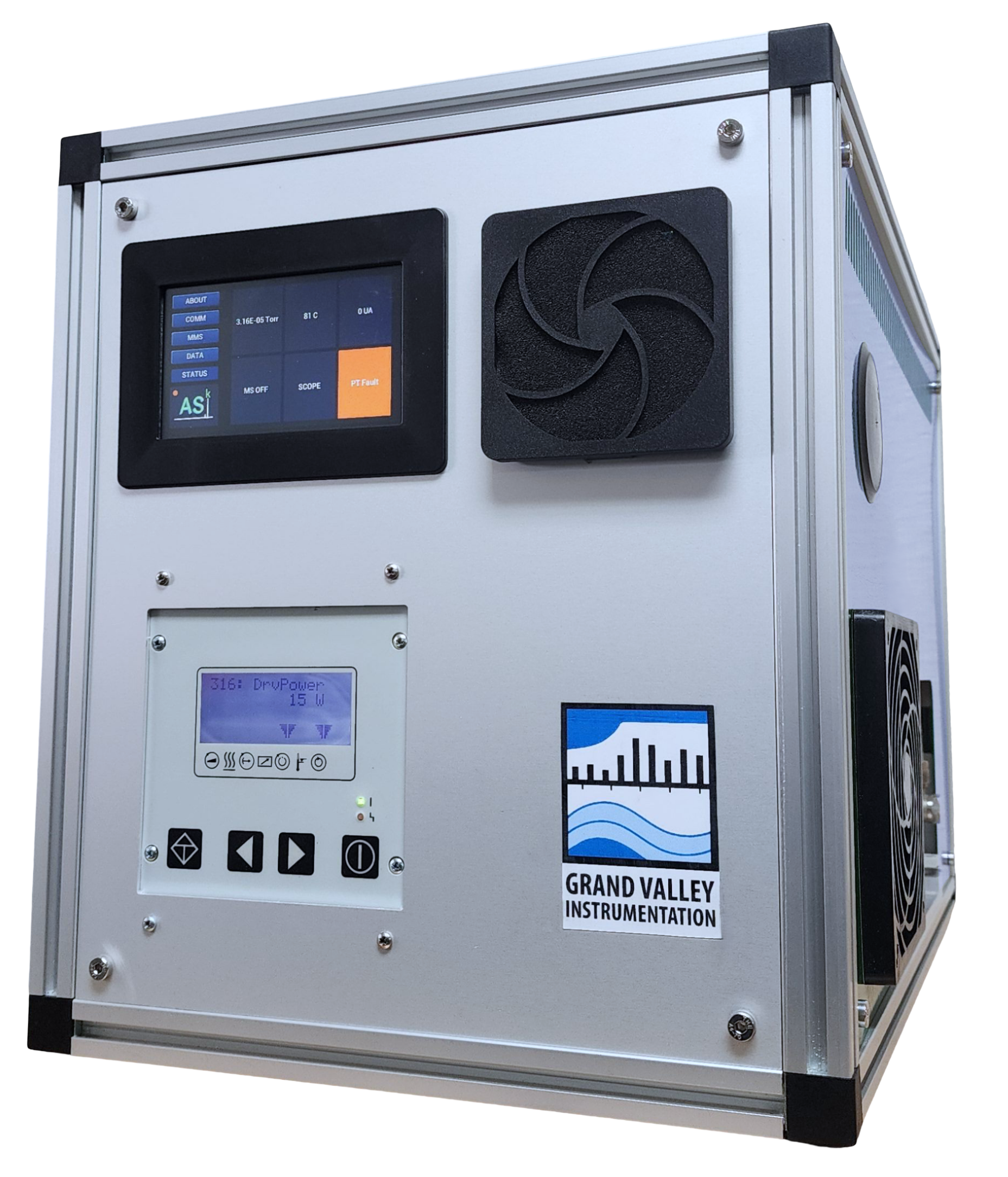

Mass Spectrometer
Turbo Display Controller
Our Turbo Display Controller (TDC) is an advanced solution for monitoring and controlling vacuum pump systems, compatible with Pfeiffer HiPace 80 or HiPace 30 pumps equipped with the TC110 controller. The TDC features a compact design, matching the dimensions of the Pfeiffer DCU-002, ensuring seamless integration into existing setups. The intuitive touchscreen interface simultaneously displays speed, power, and temperature, while its tool menu allows for easy parameter programming. With added capabilities to control up to three valves and monitor multiple heat zones and vacuum gauges, the TDC is engineered for precise system management and performance tracking
-
Designed to match the size of the Pfeiffer DCU-002, the TDC is fully compatible with Pfeiffer HiPace 80 and HiPace 30 pumps equipped with the TC110 controller, ensuring effortless upgrades or replacements.
-
Displays speed, power, and temperature simultaneously with a user-friendly menu for parameter programming, making system management straightforward.
-
Supports up to three valve controls, multiple heat zones, and vacuum gauge monitoring, offering precise and comprehensive system control.
-
The built-in report menu provides clear and accessible performance metrics, enabling efficient system analysis and optimization.
Turbo Display Controller Interface

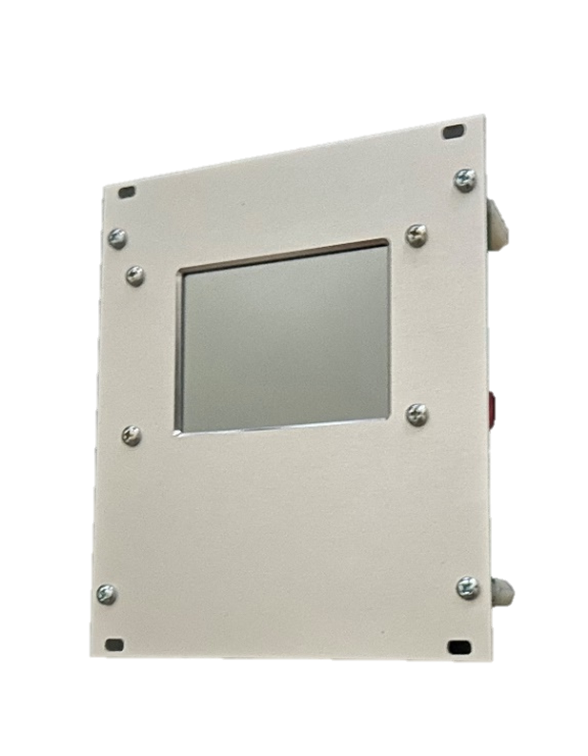

Turbo Display Controller
